LEFE Wide Long Wave Ceramic Infrared Resistance
Details

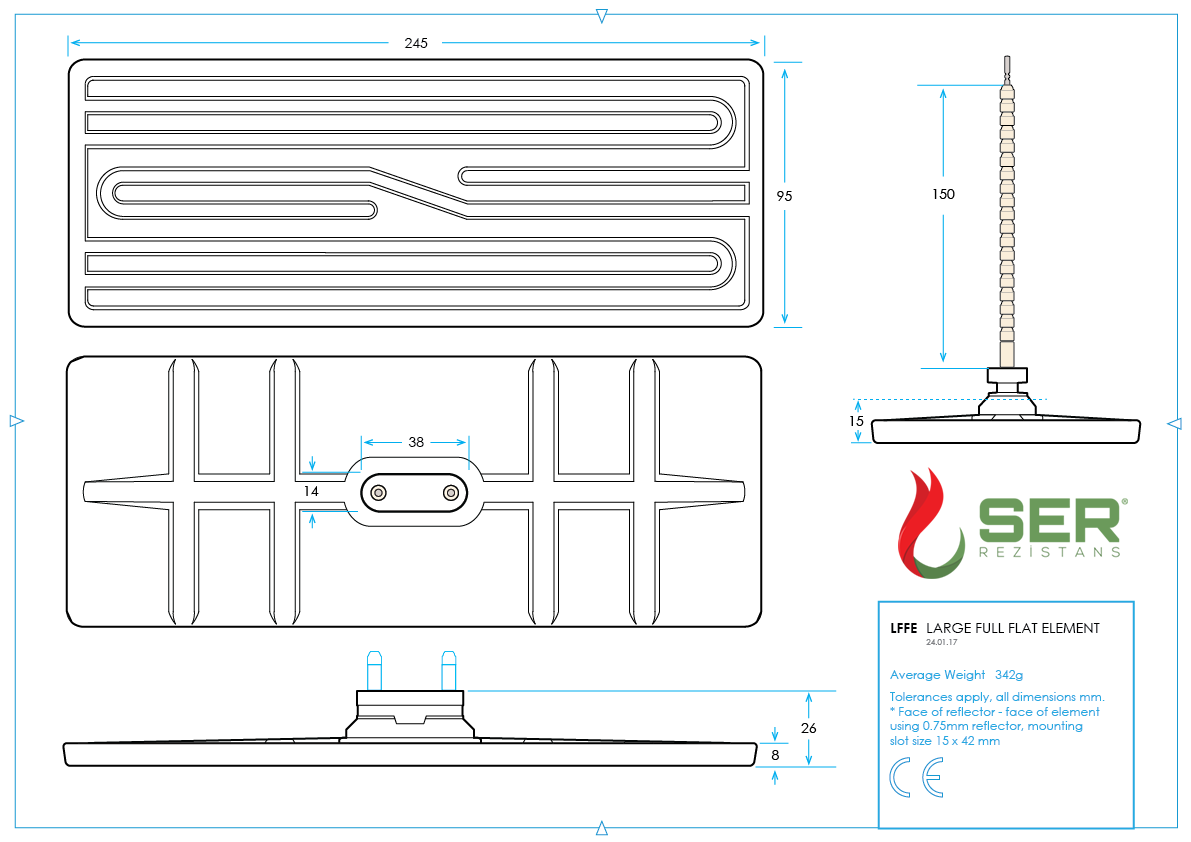

Wattage Options: 150 - 1400 Watt Dimensions: 245 x 95 x 26 mm

Fe-Cr-Al resistance wire

V: Standard 230 Volts (other voltage values are manufactured upon order)

Effective Wavelength Range: 2-10 microns

Average Operation Time - Up to 20,000 hours depending on conditions.Recommended application distance

- 100 mm to 200 mm

100mm ceramic bead insulated feeding cable

LFFE Teknik Detaylar


150W

350W

650W

750W

1400W

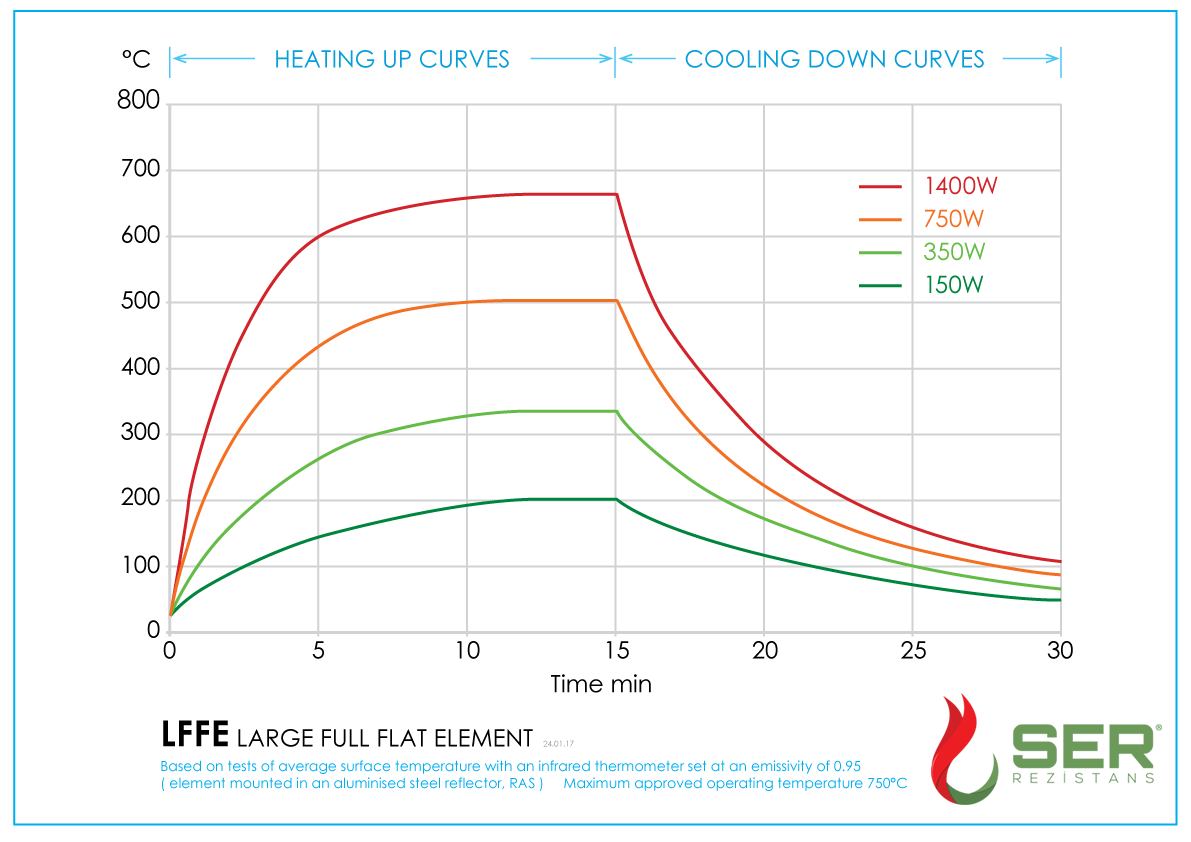

Average Surface Heat°C

204

338

428

501

667

Max. surface heat°C


750

750

750

750

750

Max. power density (kW/m²)

6

14

26

30

56

Average Weight

342 g

Dimensions

245 x 95 x 26 mm

Effective Wavelength

245 x 95 x 26 mm
